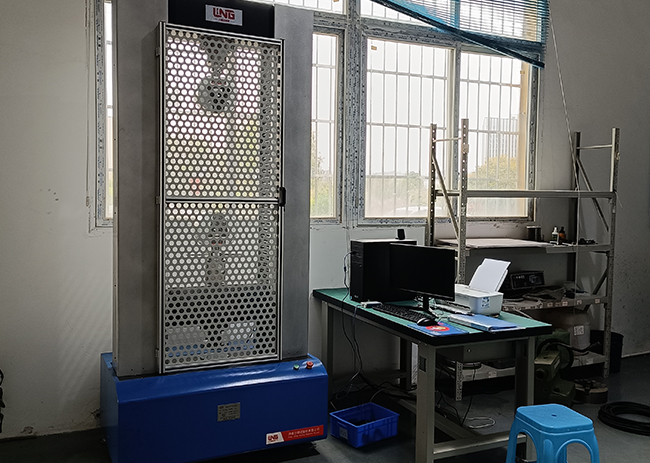

20-ton and 30-ton electronic universal testing machines: manual and hydraulic clamping configuration selection instructions

The clamping mode directly affects the test accuracy and operation experience of the electronic universal testing machine. Jinan Liling 20-ton and 30-ton electronic universal testing machine supports two configurations: manual clamping and hydraulic clamping. There is no mandatory adaptation standard, and it can be flexibly selected according to the test conditions. Combined with the long-term application experience of the industry, most users will choose the model according to the conventional scheme of 20-ton model with manual clamping and 30-ton model with hydraulic clamping.
A, 20 tons of electronic universal testing machine configuration instructions
The 20-ton model is a universal testing equipment for medium and small loads, which is suitable for conventional mechanical tests of metal and nonmetal materials and is compatible with both manual and hydraulic clamping methods.
General configuration: manual clamping
The manual clamping structure is simple in structure and convenient to operate, and the sample can be clamped by the handwheel without a hydraulic pump station, so that the operation and maintenance are simple and the use cost is low. It can meet the daily quality inspection, sampling inspection and teaching test of conventional samples such as plates, bars, fasteners, rubber and plastic materials, and adapt to the routine inspection scenarios of most enterprises.
Optional configuration: hydraulic clamping
The hydraulic clamping configuration can be upgraded for high frequency and large batch continuous detection conditions. The clamping force is even and the degree of automation is high, which can reduce the intensity of manual operation and meet the requirements of efficient detection in the laboratory.
Second, 30 tons of electronic universal testing machine configuration instructions
The 30-ton model is suitable for testing high-load and high-strength materials, and the fuselage is rigid enough to be compatible with two clamping configurations and adapt to different test scenarios.
General configuration: hydraulic clamping
Hydraulic clamping relies on hydraulic pump station to provide stable and balanced clamping force, which can effectively avoid the problems of sample loosening and slipping in large load test, and the test data has good repeatability. It is suitable for testing large-scale and high-strength samples such as steel plate, round steel and high-strength alloy, and is suitable for third-party testing and high-frequency sub-precision testing in industrial and mining enterprises.
Optional configuration: manual clamping
For the lightweight detection scene with low test frequency, small sample size and low material strength, manual clamping configuration can be selected to meet the basic test requirements, and the equipment investment is more economical.
Third, the core advantages of equipment
Jinan Liling 20-ton and 30-ton electronic universal testing machine has mature configuration, stable performance, servo control system, stable operation and compliance with detection accuracy. Matching intelligent test software can automatically calculate various mechanical parameters and generate standardized test reports. The equipment adopts portal rigid fuselage, which is stable in structure. With modular assistive devices, it can complete many tests such as stretching, compression, bending and shearing. One machine has multiple functions and is suitable for a wide range of scenes.
Jinan force collar testing machine
Specializing in the research and development and production of material mechanics testing equipment, 20-ton and 30-ton electronic universal testing machines are in sufficient stock, supporting personalized configuration customization, on-site debugging and technical training, and can provide users with suitable material testing solutions.
